routeros-mihomo-socksify国内外分流

环境介绍

路由器是RB5009UG+S+ 7.22.1版本

mihomo

准备工作

在另一台机子上拉取arm64版本的mihomo

1
docker pull --platform linux/arm64 ghcr.io/metacubex/mihomo:latest

保存为tar格式

1
docker save -o mihomo.tar ghcr.io/metacubex/mihomo:latest

然后把mihomo.tar上传到路由器内

还有一个配置文件config.yaml
下面是个人自用的配置文件
具体请按照官方配置说明来修改

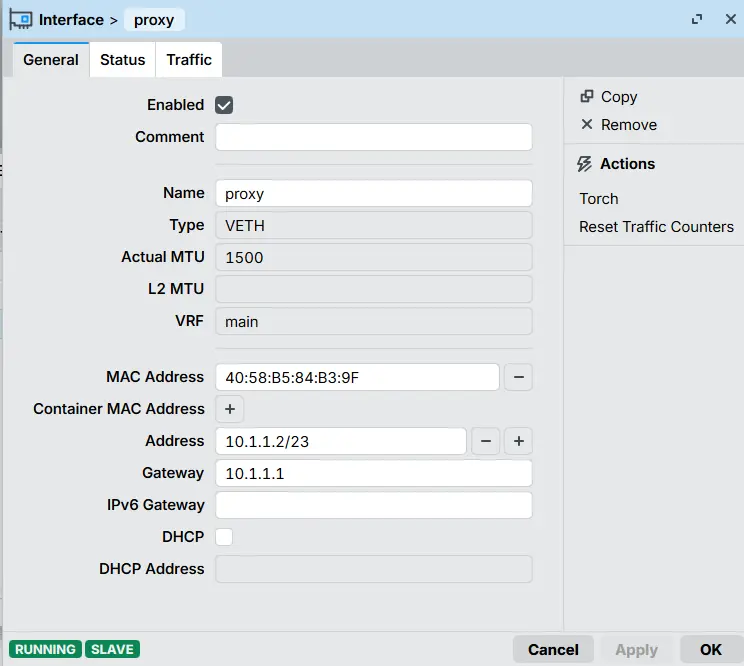

下面的配置文件中国内DNS走10.1.1.1,socks端口为1080,mihomo容器的IP为10.1.1.2

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
mixed-port: 1080 # HTTP(S) 和 SOCKS 代理混合端口

allow-lan: true # 允许局域网连接
bind-address: "*" # 绑定 IP 地址，仅作用于 allow-lan 为 true，'*'表示所有地址
authentication: # http,socks 入口的验证用户名，密码
  - "yuban10703:yuban10703"
skip-auth-prefixes: # 设置跳过验证的 IP 段
  - 127.0.0.1/8
  - ::1/128
  - 10.1.1.0/24
  - 172.16.0.0/24
lan-allowed-ips: # 允许连接的 IP 地址段，仅作用于 allow-lan 为 true, 默认值为 0.0.0.0/0 和::/0
  - 0.0.0.0/0
  - ::/0
lan-disallowed-ips: # 禁止连接的 IP 地址段，黑名单优先级高于白名单，默认值为空

find-process-mode: off

mode: rule

geodata-loader: memconservative
geodata-mode: false
#自定义 geodata url
geox-url:
  geoip: "https://testingcf.jsdelivr.net/gh/MetaCubeX/meta-rules-dat@release/geoip.dat"
  geosite: "https://testingcf.jsdelivr.net/gh/MetaCubeX/meta-rules-dat@release/geosite.dat"
  mmdb: "https://testingcf.jsdelivr.net/gh/MetaCubeX/meta-rules-dat@release/country.mmdb"
  asn: "https://github.com/xishang0128/geoip/releases/download/latest/GeoLite2-ASN.mmdb"

geo-auto-update: true # 是否自动更新 geodata
geo-update-interval: 24 # 更新间隔，单位：小时


log-level: debug # 日志等级 silent/error/warning/info/debug

ipv6: true # 开启 IPv6 总开关，关闭阻断所有 IPv6 链接和屏蔽 DNS 请求 AAAA 记录

tls:

external-controller: 0.0.0.0:9090 # RESTful API 监听地址
external-controller-tls: 0.0.0.0:9443 # RESTful API HTTPS 监听地址，需要配置 tls 部分配置文件
secret: "yuban10703" # `Authorization:Bearer ${secret}`

# RESTful API CORS标头配置
external-controller-cors:
  allow-origins:
    - "*"
  allow-private-network: true


unified-delay: true
tcp-concurrent: true # TCP 并发连接所有 IP, 将使用最快握手的 TCP

# 配置 WEB UI 目录，使用 http://{{external-controller}}/ui 访问
external-ui: /root/.config/mihomo/ui
external-ui-name: mihomo
external-ui-url: "https://github.com/MetaCubeX/metacubexd/archive/refs/heads/gh-pages.zip"

# 在RESTful API端口上开启DOH服务器
# ！！！该URL不会验证secret， 如果开启请自行保证安全问题 ！！！
external-doh-server:

interface-name:  # 设置出口网卡

# 全局 TLS 指纹，优先低于 proxy 内的 client-fingerprint
# 可选： "chrome","firefox","safari","ios","random","none" options.
# Utls is currently support TLS transport in TCP/grpc/WS/HTTP for VLESS/Vmess and trojan.
global-client-fingerprint:

disable-keep-alive: false
keep-alive-interval: 20
keep-alive-idle: 20

# routing-mark:6666 # 配置 fwmark 仅用于 Linux
experimental:
# Disable quic-go GSO support. This may result in reduced performance on Linux.
# This is not recommended for most users.
# Only users encountering issues with quic-go's internal implementation should enable this,
# and they should disable it as soon as the issue is resolved.
# This field will be removed when quic-go fixes all their issues in GSO.
# This equivalent to the environment variable QUIC_GO_DISABLE_GSO=1.
#quic-go-disable-gso: true

# 类似于 /etc/hosts, 仅支持配置单个 IP
hosts:
# '*.mihomo.dev': 127.0.0.1
# '.dev': 127.0.0.1
# 'alpha.mihomo.dev': '::1'
# test.com: [1.1.1.1, 2.2.2.2]
# home.lan: lan # lan 为特别字段，将加入本地所有网卡的地址
# baidu.com: google.com # 只允许配置一个别名

profile: # 存储 select 选择记录
  store-selected: true

  # 持久化 fake-ip
  store-fake-ip: true

# Tun 配置
tun:
  enable: false
  stack: system # gvisor/mixed
  dns-hijack:
    - "any:53"
    - "tcp://any:53"
  # auto-detect-interface: true # 自动识别出口网卡
  auto-route: true # 配置路由表
  mtu: 9000 # 最大传输单元
  # gso: false # 启用通用分段卸载，仅支持 Linux
  # gso-max-size: 65536 # 通用分段卸载包的最大大小
  auto-redirect: false # 自动配置 iptables 以重定向 TCP 连接。仅支持 Linux。带有 auto-redirect 的 auto-route 现在可以在路由器上按预期工作，无需干预。

# 嗅探域名 可选配置
sniffer:
  enable: true
  override-destination: true

  sniff:
    HTTP:
      ports: [ 80, 8080-8880 ]
      override-destination: true
    TLS:
      ports: [ 443, 8443 ]
    QUIC:
      ports: [ 443, 8443 ]
  skip-domain:
    - "Mijia Cloud"
    - "+.push.apple.com"


# DNS 配置
dns:
  enable: true # 关闭将使用系统 DNS
  cache-algorithm: arc
  prefer-h3: false # 是否开启 DoH 支持 HTTP/3，将并发尝试
  listen: 0.0.0.0:53 # 开启 DNS 服务器监听
  ipv6: true # false 将返回 AAAA 的空结果
  enhanced-mode: redir-host # or redir-host
  use-hosts: true # 查询 hosts
  use-system-hosts: false
  respect-rules: false
  nameserver:
    - "10.1.1.1"
  proxy-server-nameserver:
    - "10.1.1.1"
  nameserver-policy:
#    "+.mcdn.bilivideo.com": rcode://success
#    "+.mcdn.bilivideo.cn": rcode://success
#    "+.szbdyd.com": rcode://success
    "rule-set:cn_domain": "10.1.1.1"
    "rule-set:geolocation-!cn": "https://dns.google/dns-query#RULES&disable-ipv6=true"
  fallback:
    - tls://8.8.4.4#RULES&disable-ipv6=true
    - tls://1.1.1.1#RULES&disable-ipv6=true

proxy-providers:
  abcabc:
    type: http
    url: "你的订阅地址"
    path: ./proxy_providers/abcabc.yaml
    interval: 7200
    proxy: DIRECT
    header:
      User-Agent:
      - "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/141.0.0.0 Safari/537.36 Edg/141.0.0.0"
    health-check:
      enable: true
      url: https://www.gstatic.com/generate_204
      interval: 300
      timeout: 5000
      lazy: true
      expected-status: 204
    override:
      tfo: true
      mptcp: false
      udp: true
      udp-over-tcp: true
      down: "500 Mbps"
      up: "100 Mbps"
      ip-version: ipv4-prefer
    exclude-filter: "流量|到期"


proxy-groups:

  - name: 默认
    type: select
    include-all: true
    proxies: [ 手动选择,自动选择,香港自动,台湾自动,日本自动,新加坡自动,美国自动 ]
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/Rocket.png"


  - name: Telegram
    type: select
    proxies: [ 默认,香港自动,台湾自动,日本自动,新加坡自动,美国自动,手动选择,自动选择,DIRECT ]
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/Telegram.png"

  - name: NETFLIX
    type: select
    proxies: [ 默认,香港自动,台湾自动,日本自动,新加坡自动,美国自动,手动选择,自动选择,DIRECT ]
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/Netflix.png"

  - name: Ehentai
    type: select
    include-all: true
    proxies: [ 默认,香港自动,台湾自动,日本自动,新加坡自动,美国自动,手动选择,自动选择,DIRECT ]
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/Pornhub.png"

  - name: AI
    type: select
    include-all: true
    proxies: [ 默认,香港自动,台湾自动,日本自动,新加坡自动,美国自动,手动选择,自动选择,DIRECT ]
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/AI.png"

  - name: 国内
    type: select
    proxies: [ DIRECT,默认,香港自动,台湾自动,日本自动,新加坡自动,美国自动,手动选择,自动选择 ]
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/China.png"

  #分隔,下面是地区分组
  - name: 香港自动
    type: url-test
    include-all: true
    filter: "(?i)港|hk|hongkong|hong kong"
    tolerance: 80
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/Hong_Kong.png"

  - name: 台湾自动
    type: url-test
    include-all: true
    filter: "(?i)台|tw|taiwan"
    tolerance: 80
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/Taiwan.png"

  - name: 日本自动
    type: url-test
    include-all: true
    filter: "(?i)日|jp|japan"
    tolerance: 80
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/Japan.png"


  - name: 美国自动
    type: url-test
    include-all: true
    filter: "(?i)美|us|unitedstates|united states"
    tolerance: 150
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/US.png"


  - name: 新加坡自动
    type: url-test
    include-all: true
    filter: "(?i)(新|sg|singapore)"
    tolerance: 80
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/SG.png"


  - name: 手动选择
    type: select
    include-all-proxies: true
    include-all-providers: true
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/Static.png"


  - name: 自动选择
    type: url-test
    include-all-proxies: true
    include-all-providers: true
    tolerance: 200
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/Auto.png"


  - name: GLOBAL
    type: select
    proxies: [ DIRECT,REJECT,手动选择,默认,香港自动,台湾自动,日本自动,新加坡自动,美国自动,自动选择 ]
    include-all: true
    icon: "https://raw.githubusercontent.com/Koolson/Qure/master/IconSet/Color/Area.png"



rules:
  - IN-PORT,53,DIRECT
  - RULE-SET,private_ip,DIRECT,no-resolve
  - DOMAIN-SUFFIX,dns.google,自动选择
  - IP-CIDR,8.8.8.8/32,自动选择,no-resolve
  - IP-CIDR,8.8.4.4/32,自动选择,no-resolve
  - IP-CIDR,1.1.1.1/32,自动选择,no-resolve
  - DOMAIN-SUFFIX,micu.hk,DIRECT
  - DOMAIN-KEYWORD,topik,DIRECT
  - RULE-SET,telegram_domain,Telegram
  - RULE-SET,netflix_domain,NETFLIX
  - RULE-SET,ehentai_domain,Ehentai
  - RULE-SET,ai_domain,AI
  - RULE-SET,cn_domain,DIRECT
  - RULE-SET,geolocation-!cn,默认
  - RULE-SET,netflix_ip,NETFLIX
  - RULE-SET,telegram_ip,Telegram
  - RULE-SET,cn_ip,DIRECT
  - MATCH,默认

rule-anchor:
  ip: &ip { type: http, interval: 86400, behavior: ipcidr, format: mrs,proxy: 自动选择 }
  domain: &domain { type: http, interval: 86400, behavior: domain, format: mrs,proxy: 自动选择 }
  classical: &classical { type: http, interval: 86400, behavior: classical, format: yaml,proxy: 自动选择 }

rule-providers:
  ai_domain:
    type: http
    behavior: classical
    format: text
    url: https://ruleset.skk.moe/Clash/non_ip/ai.txt
    interval: 86400
    proxy: 自动选择
  private_domain:
    <<: *domain
    url: "https://raw.githubusercontent.com/MetaCubeX/meta-rules-dat/meta/geo/geosite/private.mrs"
  cn_domain:
    <<: *domain
    url: "https://raw.githubusercontent.com/MetaCubeX/meta-rules-dat/meta/geo/geosite/cn.mrs"
  ehentai_domain:
    <<: *domain
    url: "https://raw.githubusercontent.com/MetaCubeX/meta-rules-dat/meta/geo/geosite/ehentai.mrs"
  telegram_domain:
    <<: *domain
    url: "https://raw.githubusercontent.com/MetaCubeX/meta-rules-dat/meta/geo/geosite/telegram.mrs"
  netflix_domain:
    <<: *domain
    url: "https://raw.githubusercontent.com/MetaCubeX/meta-rules-dat/meta/geo/geosite/netflix.mrs"
  geolocation-!cn:
    <<: *domain
    url: "https://raw.githubusercontent.com/MetaCubeX/meta-rules-dat/meta/geo/geosite/geolocation-!cn.mrs"

  private_ip:
    <<: *ip
    url: "https://raw.githubusercontent.com/MetaCubeX/meta-rules-dat/meta/geo/geoip/private.mrs"
  cn_ip:
    <<: *ip
    url: "https://github.com/DustinWin/ruleset_geodata/releases/download/mihomo-ruleset/cnip.mrs"
  netflix_ip:
    <<: *ip
    url: "https://raw.githubusercontent.com/MetaCubeX/meta-rules-dat/meta/geo/geoip/netflix.mrs"
  telegram_ip:
    <<: *ip
    url: "https://raw.githubusercontent.com/MetaCubeX/meta-rules-dat/meta/geo/geoip/telegram.mrs"

启动mihomo

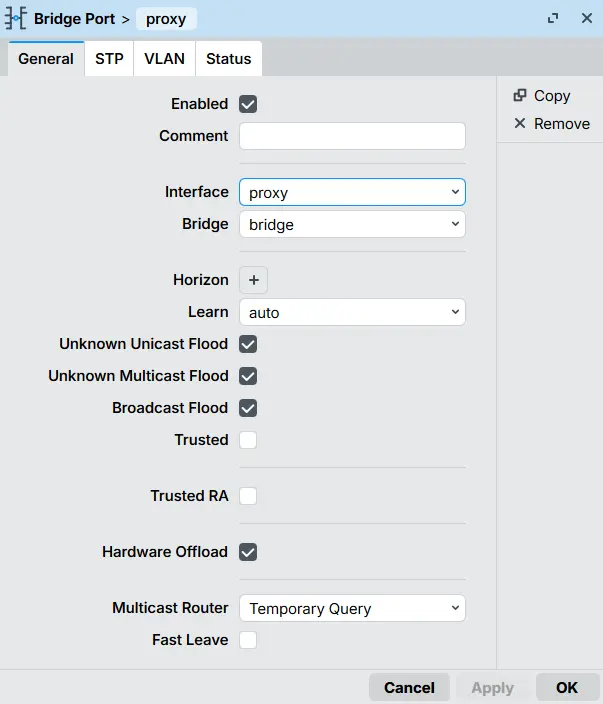

先创建一个给mihomo用的veth,再把这个接口直接加到默认的bridge里

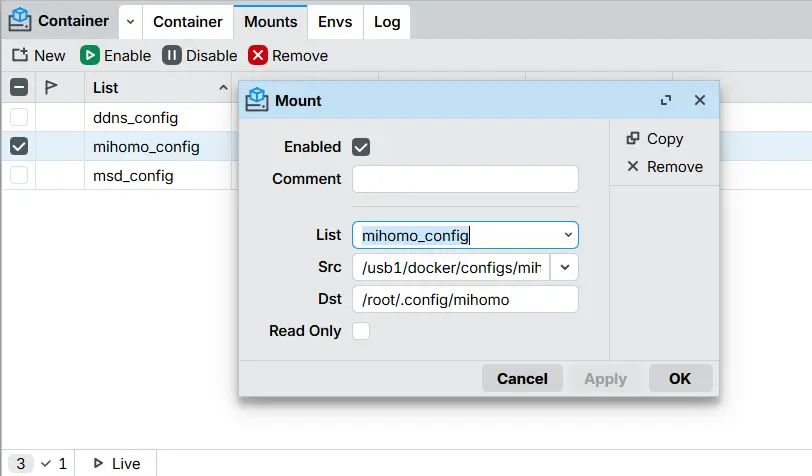

再给容器加一个配置文件用的挂载路径
Dst请保证是/root/.config/mihomo,Src按你实际位置来选择(建议还是存在外置储存里,我用的是/usb1/docker/configs/mihomo)
并把配置文件config.yaml放到Src路径下

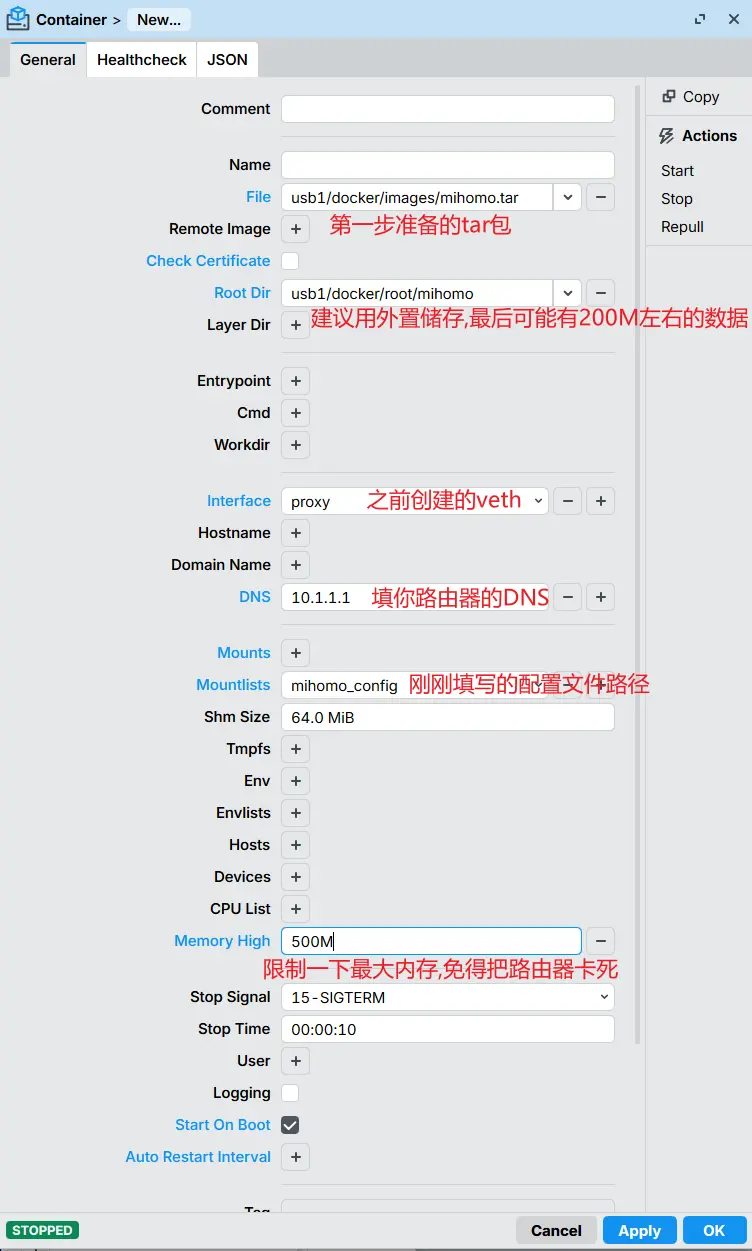

接下来就准备启动容器了

跳过mihomo配置过程,默认你已经配置好mihomo了
…..

添加一个socksify

/ip/socksify/add name=mihomo1 connection-timeout=10 socks
5-server=10.1.1.2 socks5-port=1080 port=952 disabled=no

添加防火墙规则

/ip firewall filter
add action=accept chain=input dst-port=952 protocol=tcp src-address=10.1.1.2
/ip firewall nat
add action=socksify chain=dstnat protocol=tcp socksify-service=mihomo1 src-address=你需要分流的IP

再把你需要分流的设备的DNS改为mihomo的ip
就OK了(

瞎折腾
#路由器 #docker #RouterOS #MikroTik #mihomo
routeros-mihomo-socksify国内外分流
https://2333.world/routeros-mihomo-socksify国内外分流/
作者
Yuban10703
发布于
2026年4月12日
许可协议
